Automated serial dilutions for food microbiology represent one of the highest-value applications for liquid handling automation in food and beverage testing laboratories. Serial dilution is the foundational technique for enumerating colony-forming units (CFU) in food samples — and it is also one of the most variability-prone manual steps in the microbiology workflow, with pipetting inaccuracies as small as 5% compounding across a six-step dilution series to introduce a cumulative deviation exceeding 30% in the final CFU count. Replacing manual dilution with an automated liquid handler eliminates this compounding error while simultaneously improving throughput, traceability, and compliance with internationally recognized food microbiology standards. For laboratories considering this transition, Lab Manager's complete guide to automated liquid handling provides essential context on instrument selection and implementation planning.
Why serial dilution accuracy determines CFU count reliability

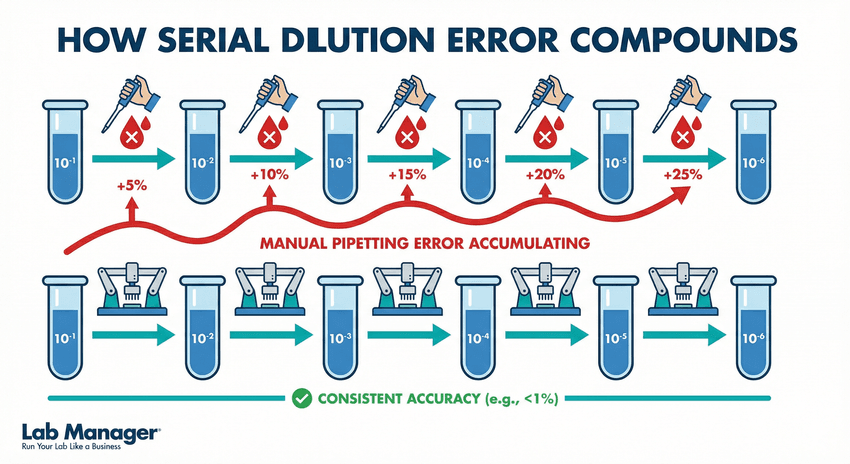

This infographic demonstrates how manual pipetting errors compound during serial dilution processes. While manual transfers can lead to steadily accumulating inaccuracies, implementing automated liquid handling ensures consistent precision across the entire dilution series.
GEMINI (2026)
Serial dilution in food microbiology involves preparing a sequence of stepwise reductions — typically ten-fold — of a homogenized food sample in a sterile diluent such as buffered peptone water (BPW) or maximum recovery diluent (MRD). Each step transfers a defined volume from the previous tube into the next, reducing the microbial concentration at each stage until the final dilution is appropriate for plating and counting. The objective is to produce plates with a countable number of colonies — conventionally 25 to 250 CFU per plate for aerobic plate count methods — from which the original sample load can be back-calculated.
The mathematical sensitivity of this calculation to dilution errors is significant. A 5% pipetting error at each step of a six-tube dilution series introduces a cumulative deviation of approximately 34% in the final calculated CFU count. A 10% per-step error expands that deviation to over 77%. In the context of food safety testing — where regulatory limits for pathogens like Listeria monocytogenes, Salmonella spp., and E. coli O157:H7 are often expressed in CFU per gram — this level of variability is not acceptable. Automated liquid handlers apply consistent aspiration force, tip depth, and transfer volume with documented accuracy, eliminating the human factors that drive dilution error in manual workflows.
| Performance parameter | Manual serial dilution | Automated serial dilution |
|---|---|---|
| Typical volume CV (%) | 2–8% per step | <1% per step |
| Operator-to-operator variability | High | Eliminated |
| Carryover risk | Moderate (technique-dependent) | Controlled (tip change per step) |
| Electronic audit trail | None | Full (timestamped run log) |
| Samples per hour | 10–20 | 50–200+ |
How automated liquid handlers perform serial dilutions step by step
An automated liquid handler performs serial dilution by executing a precisely programmed sequence of aspiration, transfer, and mixing steps across a rack of tubes or a deep-well microplate. The system aspirates the defined transfer volume from the source tube, dispenses it into the diluent in the next position, and mixes by repeated aspiration and re-dispensing before moving to the subsequent step. A fresh disposable tip is used for each transfer to prevent carryover between dilution levels — this is the functional equivalent of the best manual technique, applied without variability from operator fatigue or distraction.
The transition from tube-based to microplate-based dilution formats is a key operational advantage of automation. Deep 96-well plates can hold 2 mL per well, accommodating standard 1:10 dilution volumes in a format that reduces sample handling time and integrates directly with downstream plating steps. Liquid handlers can be programmed to generate complete dilution series across multiple samples simultaneously, processing an entire batch of food samples in the time it takes a technician to complete a single series manually.
The following steps describe a typical automated serial dilution workflow for food microbiology:
- Sample loading: Homogenized food sample aliquots are loaded into defined positions on the instrument deck in tubes or deep-well plates alongside pre-filled diluent vessels
- First transfer: The liquid handler aspirates the defined volume (typically 1 mL for a 1:10 dilution into 9 mL diluent) and dispenses into the first dilution position, mixing by repeated aspiration
- Tip change: A fresh disposable tip is fitted before each subsequent transfer to eliminate carryover
- Step progression: The instrument repeats the transfer-and-mix sequence through the full dilution series (commonly 10⁻¹ through 10⁻⁶ or beyond)
- Plating handoff: Completed dilution plates are transferred to an automated spiral plater or handled manually for agar surface plating
Which food microbiology assays benefit most from automated serial dilution
Automated serial dilutions support the full range of quantitative microbiology methods used in food safety and quality testing. Standard aerobic plate count (APC), coliform enumeration, E. coli enumeration, yeast and mold count, and lactic acid bacteria quantification all rely on the same dilution-and-plate principle, making a validated automated dilution method broadly applicable across a food laboratory's test menu once established.
Interested in lab design?
For high-volume food testing laboratories processing hundreds of samples per shift, automation delivers compounding efficiency gains. A single liquid handler running a six-step dilution series across a 48-sample batch produces 288 individual dilution transfers — all within a documented, repeatable protocol. The same volume of work would require two to three technicians and generate operator-dependent variability across every transfer. For context on how automation fits within the broader landscape of food safety testing methodology, Lab Manager's overview of microbiological testing for food safety provides a comprehensive introduction to the methods that automated liquid handling supports.
Antimicrobial susceptibility testing (AST) and minimum inhibitory concentration (MIC) determination — both common in food microbiology research settings — also rely on serial dilution and benefit from the same accuracy improvements. In these applications, a two-fold dilution series of an antimicrobial agent is prepared across a microplate, and concentration precision directly determines the accuracy of the MIC endpoint.
How automated serial dilution supports ISO 6887 and FDA BAM compliance
Food microbiology serial dilution methods are governed by internationally recognized standards that specify diluent composition, transfer volumes, mixing requirements, and acceptable performance criteria. ISO 6887 (parts 1–6) defines sample preparation and initial suspension procedures for food and feed microbiological testing, with specific provisions for different food matrices. FDA Bacteriological Analytical Manual (BAM) methods similarly prescribe dilution parameters for the pathogen-specific testing methods used across the US food industry.
Automated liquid handlers used for regulated food microbiology testing must be validated to demonstrate that their dilution performance meets the accuracy and precision requirements of the applicable standard. Method validation documentation should include volume accuracy across the full working range, inter-well CV for repeated transfers, carryover characterization between dilution steps, and system suitability criteria that are checked at the start of each analytical run. All validation data, protocol versions, and operator records should be captured electronically and stored in a format that supports audit by regulatory bodies including the FDA, USDA, and relevant national food safety authorities.
What to specify when buying a liquid handler for food microbiology serial dilution
Establishing a reliable automated serial dilution capability in a food microbiology lab requires matching instrument capabilities to the specific requirements of the test menu and sample throughput. The primary selection criteria are volume accuracy at the transfer volume in use (typically 0.1–1 mL for ten-fold dilutions), compatibility with the tube or microplate formats used in the laboratory, and the availability of a flexible scripting environment that allows method parameters to be adjusted without vendor support. Lab Manager's independent purchasing guide for automated liquid handlers provides a structured evaluation framework for labs navigating this decision.
Biosafety compatibility is also a practical consideration for food microbiology applications involving live pathogens. Liquid handlers positioned inside or immediately adjacent to a biosafety cabinet reduce aerosol exposure risk during dilution of samples with suspected pathogen loads. Closed deck designs with HEPA filtration options are available from several instrument manufacturers and are worth specifying for laboratories that routinely process samples with elevated pathogen risk. The compounding accuracy benefit of automated serial dilutions for food microbiology makes this one of the clearest cases for automation investment in any food testing environment — the analytical return in data quality and regulatory defensibility consistently outweighs the capital cost over a standard instrument lifecycle.
References
- International Organization for Standardization. (2017). ISO 6887-1: Microbiology of the food chain — Preparation of test samples, initial suspension and decimal dilutions for microbiological examination — Part 1: General rules for the preparation of the initial suspension and decimal dilutions. ISO. https://www.iso.org/standard/63335.html
- U.S. Food and Drug Administration. (2024). Bacteriological Analytical Manual (BAM). FDA. https://www.fda.gov/food/laboratory-methods-food/bacteriological-analytical-manual-bam
- Lippi, G., Lima-Oliveira, G., Brocco, G., Bassi, A., & Salvagno, G. L. (2017). Estimating the intra- and inter-individual imprecision of manual pipetting. Clinical Chemistry and Laboratory Medicine, 55(7), 962–966. https://pubmed.ncbi.nlm.nih.gov/27816957/
