Executive Summary

"How thick is it?" is a deceptive question. For a simple oil, the answer is a single number. For a complex gel, the answer depends entirely on how hard you push it, how fast you stir it, and how hot it is.

This complexity creates the divide between the Viscometer and the Rheometer. A Viscometer is a Quality Control (QC) tool; it spins a spindle at a set speed to verify if a product meets a specification. A Rheometer is a Research & Development (R&D) tool; it applies precise stress or strain to characterize a material's internal structure, measuring properties like yield stress, viscoelasticity, and creep.

Purchasing a Rheometer for routine QC is a waste of capital and complexity. Purchasing a Viscometer for formulation work is a recipe for product failure.

This guide outlines the physics of flow, the geometry of spindles, and the critical maintenance requirements (like clean air supplies) to ensure you buy the right instrument for your material's behavior.

1. Understanding the Technology Landscape

The market for flow measurement is vast, spanning from simple mechanical dial-reading viscometers found in high school labs to sophisticated air-bearing rheometers that cost more than a luxury car. To make an informed purchasing decision, Lab Managers must first strip away the marketing terms and distinguish between two fundamental physical behaviors: "Flow" (Viscosity) and "Deformation" (Rheology). While both instruments involve a spinning shaft, the internal engineering used to measure resistance differs radically, determining whether you get a simple number or a comprehensive structural analysis.

Core Instrument Types

• Rotational Viscometer (Mechanical Bearing): The industry standard for QC. A spring connects the motor to a spindle. The drag on the spindle twists the spring, and that twist is measured as torque.
  • Primary Function: Viscosity (Flow Resistance).
  • Best for: Routine QC of paints, foods, shampoos, and oils where a single-point pass/fail is needed.
• Capillary Viscometer: Measures the time it takes for liquid to flow through a glass tube under gravity.
  • Primary Function: Kinematic Viscosity.
  • Best for: Petrochemicals, dilute polymer solutions, and oils.
• Rotational Rheometer (Air Bearing): Instead of a mechanical spring, the shaft floats on a cushion of compressed air. This allows for near-zero friction, enabling the measurement of incredibly weak structures and the application of Oscillatory (back-and-forth) motion.
  • Primary Function: Viscoelasticity (G' and G'') & Yield Stress.
  • Best for: R&D, formulation, curing studies, and complex soft solids (yogurt, asphalt, adhesives).

2. Critical Evaluation Criteria: The Decision Matrix

The choice between a viscometer and a rheometer is rarely a matter of preference; it is strictly defined by the complexity of your material and the depth of data your application requires. Buying based solely on budget often leads to the "Viscometer Trap"—purchasing an instrument that can provide a number, but not the right number for predicting real-world behavior. Use this decision matrix to map your analytical goals—whether simple batch consistency or complex formulation stability—to the correct hardware class.

Decision Track 1: The Analytical Goal

• "Does this batch meet the spec?" → Rotational Viscometer
  • Context: You need to know if the viscosity is 5,000 cP ± 100 cP at 20 RPM.
  • Hardware: Standard Spring-type Viscometer.
  • Estimated Cost: $3,000 – $8,000
• "Will this lotion pump out of the bottle, but stay on the hand?" → Rheometer
  • Context: You need to measure Yield Stress (force to start flow) and Thixotropy (recovery time after shearing). A standard viscometer struggles to measure these accurately.
  • Hardware: Stress-Controlled Rheometer.
  • Estimated Cost: $30,000 – $80,000+

Decision Track 2: Measurement Geometry

• Dip-in Spindles (Standard):
  • Use: Beakers of 500mL+. Easy to clean, robust.
  • Flaw: The shear rate is undefined and varies across the beaker. Not for absolute scientific data.

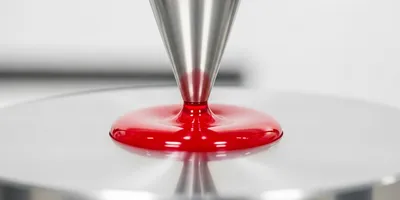

• Cone & Plate / Parallel Plate:
  • Use: Tiny sample volumes (< 1mL).
  • Benefit: Defined shear rate (absolute viscosity) and easy cleaning.
  • Constraint: Requires precise gap setting (microns) and temperature control.

3. Key Evaluation Pillars

Once you have selected the fundamental instrument class (Viscometer vs. Rheometer), the specific engineering features will determine the unit's versatility and longevity. A budget viscometer with limited speed options may save capital upfront, but it will fail when you need to test a new product line with different flow behavior. These "under-the-hood" specifications—such as torque sensitivity, temperature stability, and bearing type—are what differentiate a robust analytical tool from a limited single-point tester.

A. Torque Range (Sensitivity)

The torque sensor determines what you can measure.

• Low Torque (LV): Required for water-like solvents, juices, and inks.
• Regular Torque (RV): The standard for creams, paints, and gums.
• High Torque (HB): Required for asphalt, caulking, and thick pastes.
• The Trap: A "Regular" torque machine cannot measure water viscosity accurately; the spring is too stiff. You must match the spring to the sample.

B. Temperature Control

Viscosity changes dramatically with temperature (e.g., honey flows more easily when warm).

• Water Bath: Cheap, but slow to change temperature. Messy hoses.
• Peltier Plate: Rapid heating/cooling (electronic). Essential for Rheometers and Cone/Plate systems. Expensive but offers high throughput.

C. Bearing Type (Friction)

• Jewel/Ball Bearing: Used in Viscometers. Rugged but has friction. Cannot measure "Zero Shear" viscosity or very weak structures.
• Air Bearing: Used in Rheometers. Zero friction. Requires a supply of clean, dry, oil-free compressed air. If the air supply fails, the bearing crashes and breaks.

4. The Hidden Costs: Total Cost of Ownership (TCO)

Unlike solid-state electronic instruments, viscometers and rheometers are precision mechanical devices subject to physical wear and tear. The shafts bend, bearings wear out, and springs fatigue. Consequently, the Total Cost of Ownership (TCO) includes high recurring costs for calibration standards, geometry replacements, and specialized infrastructure like clean air supplies that must be factored into the operational budget.

5. Key Questions to Ask Vendors

Vendor brochures often obscure the limitations of mechanical bearings or gloss over the infrastructure requirements of high-end units. Sales teams may claim a simple viscometer can measure 'Yield Stress,' concealing the mathematical extrapolations required to do so. Ask these targeted questions to ensure the unit fits your lab's infrastructure, your sample's physics, and your team's skill level.

1. "What is the minimum viscosity I can measure with this geometry?" (Don't accept "1 cP" as a generic answer. Ask specifically for the configuration you are buying.)

2. "Does the system support 'Oscillation' testing?" (Essential if you ever need to measure shelf stability or gel strength. Basic viscometers do not do this.)

3. "Do I need a water bath or chiller for the Peltier plate?" (Peltier plates heat electrically, but they need a small water circulator to dump the waste heat. This is an extra piece of equipment.)

4. "Is the gap setting automatic or manual?" (On Cone & Plate systems, a manual gap setting is a huge source of operator error. Automatic zeroing is preferred.)

6. FAQ: Quick Reference for Decision Makers

Q: What is the difference between Newtonian and Non-Newtonian?

A: Newtonian fluids (water, oil) have a constant viscosity regardless of speed. Non-Newtonian fluids (ketchup, paint) change viscosity when you stir them (shear thinning). You cannot measure Non-Newtonian fluids with a simple cup-and-dip method; speed must be strictly controlled.

Q: Why do I get different readings with different spindles?

A: This is normal for Non-Newtonian fluids. Different spindles create different "shear rates." If the fluid is shear-thinning, a smaller spindle might give a different reading than a large one. You must report "Viscosity @ Speed X with Spindle Y."

Q: Can I measure curing (hardening) with a viscometer?

A: Poorly. As the sample hardens, the spindle creates a hole (channeling) and spins in air. You need an Oscillatory Rheometer to measure curing without breaking the sample structure.

7. Emerging Trends to Watch

The world of rheology is rapidly evolving from a niche, expert-only discipline toward automation and accessibility. New technologies are reducing the sample volume required—critical for biopharma—and simplifying the user interface to allow non-experts to run complex oscillatory tests. These trends are lowering the barrier to entry, allowing QC labs to access R&D-level data.

• Microfluidic Rheometry: New chip-based viscometers allow for viscosity measurement using microliters of sample. This is revolutionizing biopharma (protein formulation), where the sample is extremely expensive.
• Touchscreen & Guided Methods: Modern viscometers now include "Wizards" that guide the user to the correct spindle/speed combination, preventing "Out of Range" errors that plague manual dials.
• Powder Rheology: Adapters that allow rheometers to measure the flowability of dry powders (for pharmaceutical tableting or 3D printing) by treating the powder like a fluid.

Conclusion: The choice between a Viscometer and a Rheometer is a trade-off between cost and capability. For routine QC where the goal is "consistency," the rugged Viscometer reigns supreme. For R&D where the goal is "understanding structure," the Rheometer is the indispensable tool.
